Multi Axis

Our Multi-Axis centres, which include 3 x Mazak Integrex’s i300S, i200S and i100 Bartac all with 72 tool changer carousels and one with 4″ dia bar feed capability.

1

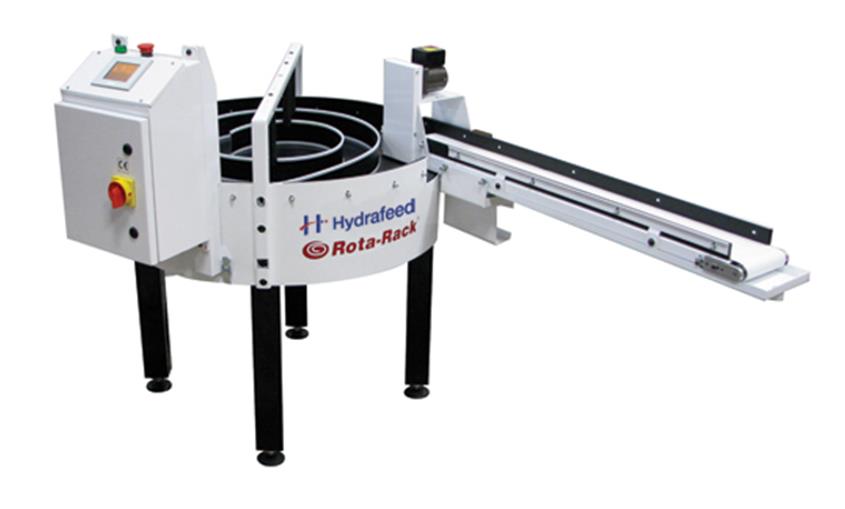

rotarack

1 x Mazak Integrex i100 Bartac
MULTI AXIS MACHINING CENTRE

Sub-spindle – Driven Tools Articulating Hd – Y Axis – Hydra Feed Rota Rack
Main Spindle

  • Chuck 200mm Diameter
  • 500 mm Max Turn Diameter
  • 854 mm Max Turn Length
  • Bar Capacity 102mm
  • Tailstock Use Sub-spindle
  • Collet 200mm Diameter

Sub-spindle

  • Chuck 152.4mm Diameter
  • Bar Capacity 102mm

Y – Axis

  • Chuck 210mm (+/- 105)
  • In House ID – CNC L23
downloadplantlist
2

1 x Mazak Integrex i300 S
MULTI AXIS MACHINING CENTRE

Sub-spindle – Driven Tools Articulating Hd – Y Axis
Main Spindle

  • Chuck 300mm Diameter
  • 658mm Max Turn Diameter
  • 1519mm Max Turn Length
  • Bar Capacity 80mm
  • Tailstock Use Sub-spindle
  • Collet 200mm Diameter

Sub-spindle

  • Chuck 250mm Diameter
  • 658mm Max Turn Diameter
  • Bar Capacity 80mm

Y – Axis

  • Chuck 250mm (+/- 125)
  • In House ID – CNC L19
downloadplantlist
3

1 x Mazak Integrex i200 S
MULTI AXIS MACHINING CENTRE

Sub-spindle – Driven Tools Articulating Hd – Y Axis
Main Spindle

  • Chuck 254mm Diameter
  • 658mm Max Turn Diameter
  • 1011mm Max Turn Length
  • Bar Capacity 80mm
  • Tailstock Use Sub-spindle
  • Collet 200mm Diameter

Sub-spindle

  • Chuck 200mm Diameter
  • 658mm Max Turn Diameter
  • Bar Capacity 80mm

Y – Axis

  • Chuck 250mm (+/- 125)
  • In House ID – CNC L24
downloadplantlist
